2 Pieces Cans Check
Wall Thick Check
Instrument to measure the thickness of the can body.
The thickness measurement of the can body in different points is a very important parameter in the quality control in the process of producing the can.
The measurement is taken by a pair of Mitutoyo digital indicators with a resolution of 0.01mm mounted on a special support.
It is possible to connect the measurement instrument to an external computer via a communications interface.
Inner Diameter Check
Used to measure the inner diameter of 2/3-piece cans.
Available in three versions for cans with different diameters: ≤ 69 mm (211); ≤ 105 mm (404); ≤ 153 mm (603).
Top Load Check
Instrument for measuring the top load.
It measures the resistance to top load of 2-piece cans.
The can is subjected to a progressive force until it buckles. The value of the force at which the can buckles permanently is recorded and displayed on the screen.

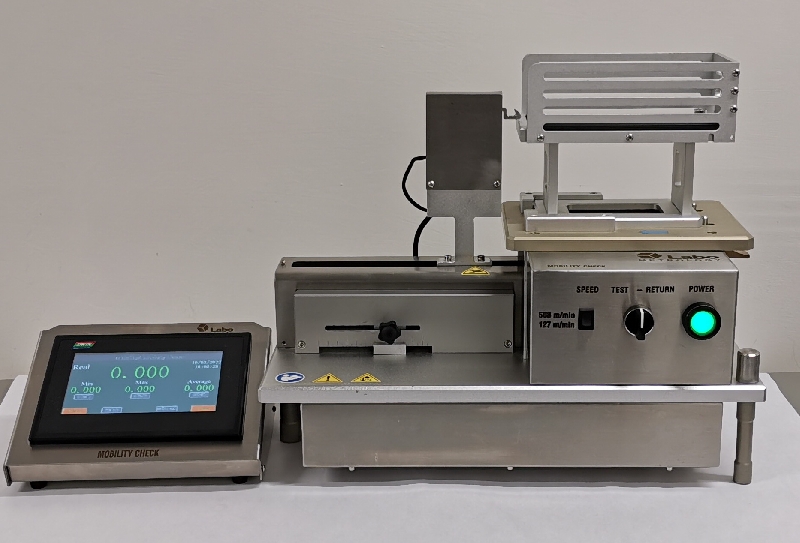

Mobility Check
Instrument to check mobility (sliding).
The can lubrication tester is used to measure the sliding friction coefficient on the body and base of the can.
It can also measure the sliding friction coefficient of empty spaces. A special feature is the possibility to select a dedicated data transmission mode by sending the measured values to an external PC (1 sample value for each millimetre).
